quad core

Orange Pi plus

Artikel 3 van 13
Overzicht

What can I do with Orange Pi Plus?


Build…

  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi Plus is open source



Who’s it for?



Orange Pi Plus is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.





Hardware specification

CPU

 A31S ARM Cortex-A7 quad-core,256 KB L1 cache 1 MB L2 cache

GPU

PowerVR SGX544MP2, Comply with OpenGL ES 2.0, OpenCL 1.x, DX 9_3

Memory (SDRAM)

1GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 64GB) / MMC card slot

Onboard Network

10/100/1000 Ethernet RJ45, WIFI onboard

Video Input

A CSI input connector allows for the connection of a designed camera module

Audio Input

MIC,LINEIN,FMIN

Video Outputs

HDMI, CVBS , LVDS/RGB

Audio Output

3.5 mm Jack and HDMI

Power Source

USB OTG input,DC input

USB 2.0 Ports

Four USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power button: Next to Reset button

UBoot button (optional): Behind HDMI connector

Low-level peripherals

eight GPIO,four UART, three I²C bus, SPI bus with two chip selects,

six ADC, two PWM,+3.3 V, +5 V, ground

GPIO(2x9) pin

GPIO,UART, ADC,RESET ,+3.3v,+5v,ground.

LED

Power Key & RJ45

Key

IR input,UBOOT,POWER

Supported OS

Android and Linux OS etc.

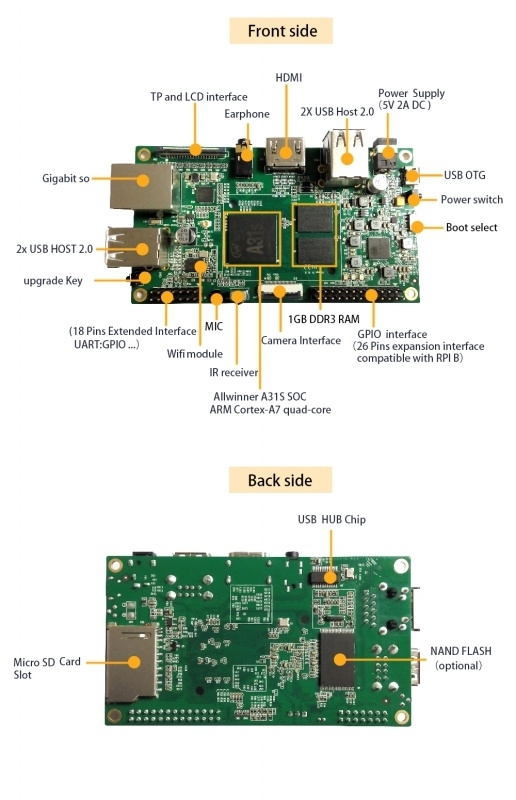

Interface definition

Product size

112 mm × 60mm

Weight

60g

Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited
