BananaPI M64, 64 bits QUAD core

Vorige Artikel 4 van 36 Volgende
€ 79,00 (inclusief btw)
Voorraad 1 stuk
CPU1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor
GPUMALI-400 MP2 @ 500MHz
Memory2GB DDR3 SDRAM (shared with GPU)
Storage SupportMicroSD Card(up to 64GB)/eMMC(8GB onboard)
Onboard Network10/100/1000Mbps ethernet (Realtek RTL8211E/D)
WiFi802.11 b/g/n (AP6212)
BluetoothBT4.0 (AP6212)
Video InCSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz
Video OutHDMI 1.4 with resolutions (upto 4K @24Hz)
MIPI DSI for RAW LCD panels
Audio Out3.5 mm Jack and HDMI
Audio InOn board microphone
Power Source5V 2A DC port
USB Ports2x USB 2.0, USB OTG(Micro USB)
ButtonsReset button, Power button, U-boot button
GPIO40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground
LEDPower status Led and RJ45 Led
IROnboard IR receiver
OSAndroid and Linux etc.OS
Dimensions92mm x 60mm
Weight45g

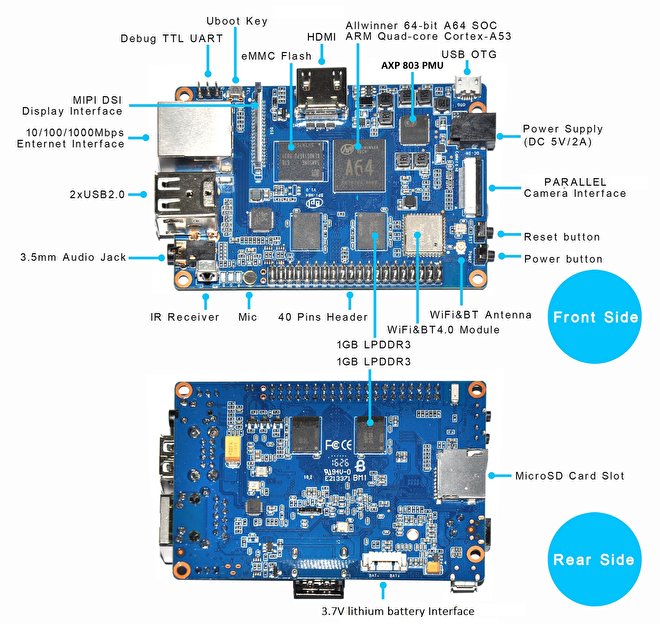

 BPI M3-gpio.jpg
