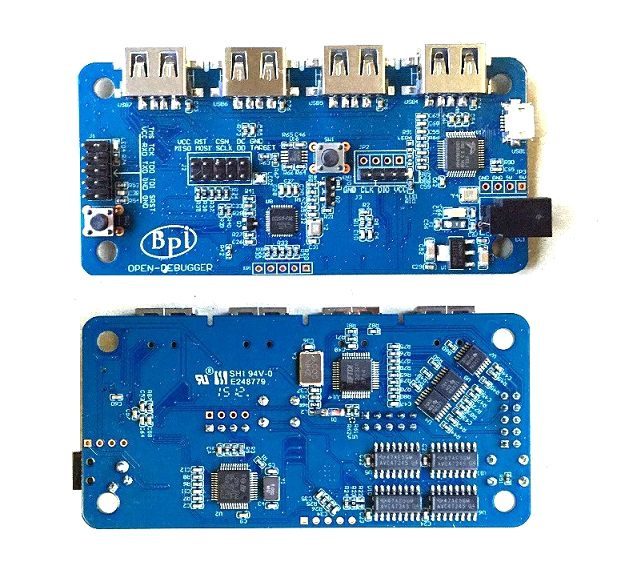

Open Debugger

Artikel 10 van 36
€ 49,95 (inclusief btw)
Voorraad 1 stuk

Introduction:



Open Debugger is a set of programming tools in the development of STM series of microcontrollers, TI CC1x, 2x, TI CC3x series SOC, when STC Series MCU can be programmed quickly and easily debug, debugging programmer does not have to do something different series of chips switching plug tedious work. In addition, it also integrates a USB to serial port, which is a common interface for embedded development. It is also one of USB2.0 HUB, making it easy to extend to other USB tools. With it, no longer need to face a bunch of different writer, complicated mess of wiring, USB port deficiencies



Support Objects

CC Debugger Interface



Programming and debugging of the following 8051-based TI SoCs:

CC1110,CC1111

CC2430,CC2431

CC2510,CC2511

CC2530,CC2531,CC2533

CC2540,CC2541

CC2543,CC2544,CC2545



To SmartRF Studio control same apparatus. In addition, you can also control the following transceiver SmartRF:

CC1120,CC1121,CC1125,CC1175

CC1100,CC1101,CC110L,CC113L,CC115L

CC2500,CC2520



It can also be used to program the PurePath wireless devices:

CC8520,CC8521

CC8530,CC8531



SWD Interface

Programming and debugging mainstream ARM7 \ 9 \ 11, Cortex-A5 \ A8 \ A9 \ M0 \ M1 \ M3 \ M4

Supported MCU manufacturers:

ST,Freecale,Nuvoton,NXP,TI,Cypress,Atmel,Analog,Fujitsu,Toshiba,

Energy Micro...。

Speeds up the programming and debugging functions 4Mhz: Write Flash Rom, EEPROM,   ARF, and support for full speed, stepping, breakpoints



JTAG Interface

JTAG programming and debugging interface for all supported kernel。



UART Interface

STC series microcontroller programming and debugging output port for printing information.



more please see online document:

https://bananapi.gitbooks.io/bpi-open-debugger-burn-board/content/
